S8VK-C

The most economic power supply from Omron, a part of the LITE category (economic and endurant)

Download documentation (enghlish only):

datasheet S8VK-C

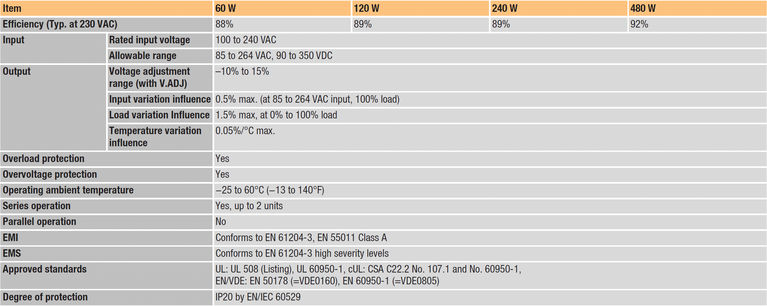

The S8VK-C Lite family is an ideal choice for cost-sensitive applications that require a dependable high-quality power supply. The family is available with power ratings from 60 W to 480 W.

  • Operating temperature range of -25º to +60ºC
  • Double set of DC output terminals (three for the negative) provide easy wiring
  • Universal input capability, 100 to 240 VAC and 90 to 350 VDC
  • Conforms to EN61204-3, EN55011 Class A
  • Improved DIN-rail mounting clip provides a better resistance to vibrations and allows easy installation (using one hand to mount in a flash)

The most economic power supply from Omron, a part of the LITE category (economic and endurant)

ordering info:
