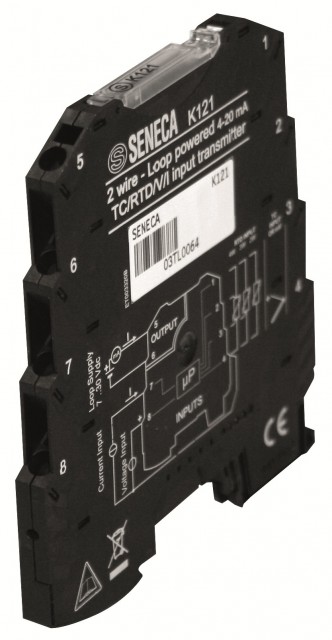

K121

Convertor/izolator universal programabil

Documentatie de descarcat (in engleza):

datasheet K121

Order code:		K121
Description:		Loop powered isolator / universal converter (mA, V, Ohm, RTD, TC)
Power supply range:		5..30 Vdc (by loop)
Isolation:		1,5 kVac
Input:		nr 1 channel, current (±24 mA), V voltage (±30 V), mV voltage (±150 mV), TC (J, K, R, S, T, B, E, N - EN 60584), RTD (Pt100, Pt500, Pt1000, Ni100) 2/3/4 wires, resistance (500 Ohm..10 kOhm; fino a 1.760 Ohm)
Response time:		140..620 ms
Output:		nr 1 channel, current (4..20 mA)
Accuracy:		0,1%

Convertor/izolator universal programabil
