CJ1M

PLC modular OMRON, de capacitate medie

Documentatie de descarcat (in engleza):

datasheet CJ1M

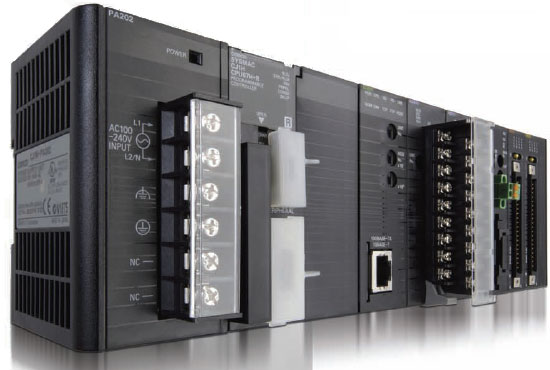

PLC modular cu dimensiuni reduse, perfect compatibil cu seturile de instructiuni de la CJ1G/H si CS1, comenzile de comunicatie si organizarea memoriei.

  • PLC modular entry-level, compatibil cu CJ1G/H
  • Unitati CPU cu intrari incorporate in impuls pentru control de miscare, cu sau fara interfata Ethernet
  • Programare structurata IEC 61131-3 cu librarii extinse de function blocks
  • Posibilitatea de a comunica cu toate retelele de comunicatie industriale
  • Slot CompactFlash pentru stocare informati sau salvare program
  • Gama larga de module de extensie

PLC modular OMRON, de capacitate medie


SYSMAC CJ1_Features3

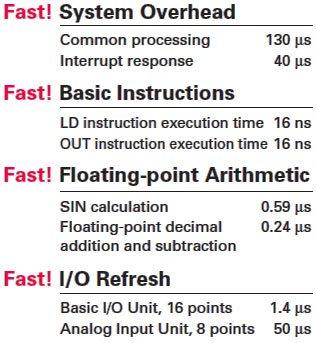

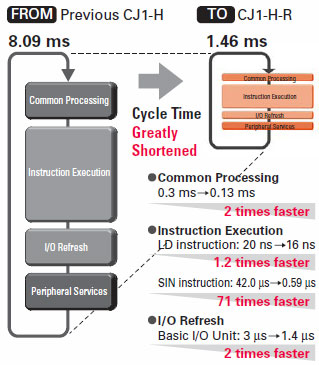

All Processes Speeded Up for Enhanced Application Performance.

SYSMAC CJ1_Features4



SYSMAC CJ1_Features5

Small!

Super-compact design that meets the highest standards in its class. Even a narrow space in a machine serves as a control panel.

Compact Size Saves Space when Incorporated into Machines.
Contributes to Size Reduction in Devices and to Space Savings in Control Panels.

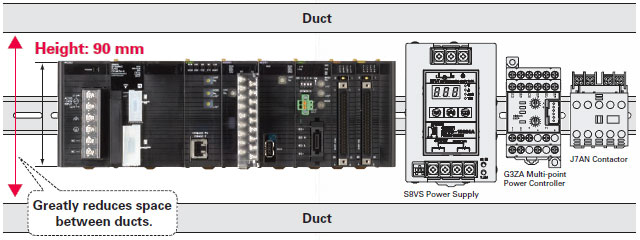

Super Compact: Only 90 mm High and 65 mm Deep. Can Be Mounted in a Control Panel with Other Small Components.

SYSMAC CJ1_Features6

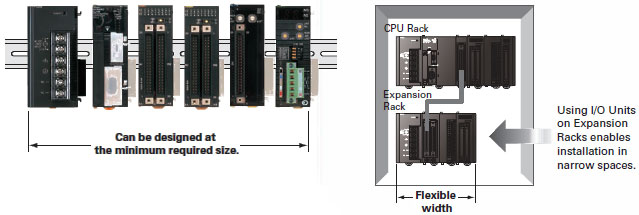

Backplane-free Structure Enables Flexible-width Design. Using I/O Units on Expansion Racks Further Improves Space Efficiency in Control Panels.

SYSMAC CJ1_Features7

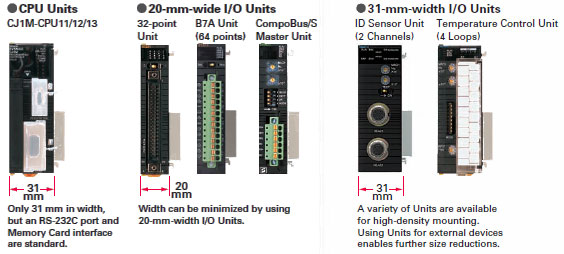

A Variety of Compact Units

SYSMAC CJ1_Features8

Flexible

Suitable for any application, from small device and te mperature control, to large-scale control over networks.

A Wide Variety of CPU Units and Other Units to Handle Virtually Any Type of Machine Control.

A Complete Lineup of CPU Units, from Low-end to High-end

Despite the wide variety of models, memory allocations, instructions, and I/O Units are all compatible. This makes it easy to design migration from large-scale systems to small devices.

SYSMAC CJ1_Features9

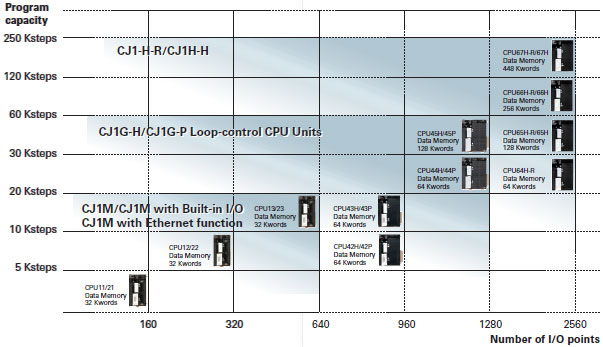

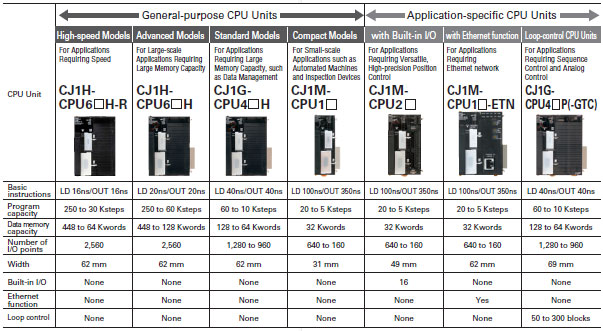

A Wide Selection of CPU Units to Match the Application

Select the optimum CPU Unit according to your system requirements.

SYSMAC CJ1_Features10

Wide Selection of Unit Groups

Choose from a wide range of Units, from Basic I/O Units, Analog Units, and Position Control Units to Ethernet Units. All can be used with any of the CPU Units.

Basic I/O Units (33 models total)

A wide variety of products, such as high-density mountable connectors and removable terminal blocks, is available to meet your requirements.

SYSMAC CJ1_Features11

Units for Special Applications (5 models total)

Units, such as the B7A, are available for interrupt inputs, quick-response inputs, and reduced I/O wiring.

SYSMAC CJ1_Features12

Analog, Process-control, and Temperature Control Units (24 models total)

Input Units and Temperature Control Units are available to handle process data, such as temperatures, currents, and voltages. A complete lineup of models (including models with isolation between channels, high-speed models, and high-precision models) is available for a wide range of applications.



SYSMAC CJ1_Features13

Positioning Units (22 models total)

Various Units are available for control from High-speed Counter Units to Position Control Units for open-collector and line-driver pulse outputs and EtherCAT or MECHATROLINK-II communications and Motion Control Units for applications using motion language.

SYSMAC CJ1_Features14

Communications Units (13 models total)

Units are available for general-purpose Ethernet, as well as for data links between PLCs, and the DeviceNet and CompoNet open networks.

SYSMAC CJ1_Features15

Communications Units (13 models total)

Units are available for general-purpose Ethernet, as well as for data links between PLCs, and the DeviceNet and CompoNet open networks.

SYSMAC CJ1_Features15

Other Units (5 models total)

Units such as RFID Controllers and Data Collection Units are available to meet a wide range of needs.

SYSMAC CJ1_Features16

CJ1 CPU Units

Product name

Specifications

Model

I/O capacity/
Mountable Units
(Expansion Racks)

Program
capacity

Data memory
capacity

LD
instruction
execution
time

CJ1-H-R
CPU Units

2,560 points/40 Units
(3 Expansion Racks
max.)

250K steps

448K words
(DM: 32K words,
EM: 32K words
× 13 banks)

0.016 μs

CJ1H-CPU67H-R

120K steps

256K words
(DM: 32K words,
EM: 32K words
× 7 banks)

CJ1H-CPU66H-R

60K steps

128K words
(DM: 32K words,
EM: 32K words
× 3 banks)

CJ1H-CPU65H-R

30K steps

64K words
(DM: 32K words,
EM: 32K words
× 1 bank)

CJ1H-CPU64H-R

CJ1H-H
CPU Units

2,560 points/40 Units
(3 Expansion Racks
max.)

250K steps

448K words
(DM: 32K words,
EM: 32K words
× 13 banks)

0.02 μs

CJ1H-CPU67H

120K steps

256K words
(DM: 32K words,
EM: 32K words
× 7 banks)

CJ1H-CPU66H

60K steps

128K words
(DM: 32K words,
EM: 32K words
× 3 banks)

CJ1H-CPU65H

CJ1G-H
CPU Units

1,280 points/40 Units
(3 Expansion Racks
max.)

60K steps

128K words
(DM: 32K words,
EM: 32K words
× 3 banks)

0.04 μs

CJ1G-CPU45H

30K steps

64K words
(DM: 32K words,
EM: 32K words
× 1 bank)

CJ1G-CPU44H

960 points/30 Units
(2 Expansion Racks
max.)

20K steps

CJ1G-CPU43H

10K steps

CJ1G-CPU42H

CJ1M
CPU
Units

Without
built-in
I/O

640 points/20 Units
(1 Expansion Racks
max.)

20K steps

32 K words
(DM: 32K words,
EM: None)

0.1 μs

CJ1M-CPU13

320 points/10 Units
(No Expansion Rack)

10K steps

CJ1M-CPU12

160 points/10 Units
(No Expansion Rack)

5K steps

CJ1M-CPU11

CJ1M CPU Units (with Built-in I/O)

Product
name

Specifications

Model

I/O capacity/
Mountable
Units
(Expansion
Racks)

Program
capacity

Data
memory
capacity

LD
instruction
execution
time

Built-in
I/O

CJ1M
CPU
Units

Built-in
I/O *2

640 points/
20 Units
(1 Expansion
Racks max.)

20K steps

32K words
(DM: 32K
words,
EM: None)

0.1 μs

10 inputs and
6 outputs,
2 counter
inputs,
2 pulse
outputs

CJ1M-CPU23

320 points/
10 Units (No
Expansion Rack)

10K steps

CJ1M-CPU22

160 points/
10 Units (No
Expansion Rack)

5K steps

CJ1M-CPU21

CJ1M CPU Units (with Ethernet function)

Product name

Specifications

Model

I/O capacity/
Mountable
Units
(Expansion
Racks)

Program
capacity

Data
memory
capacity

LD
instruction
execution
time

Ethernet
function

CJ1M
CPU
Units

Ethernet
function

640 points/
20 Units
(1 Expansion
Racks max.)

20K steps

32K words
(DM: 32K
words,
EM: None)

0.1 μs

YES
*1

CJ1M-CPU13-ETN

320 points/
10 Units (No
Expansion Rack)

10K steps

CJ1M-CPU12-ETN

160 points/
10 Units (No
Expansion Rack)

5K steps

CJ1M-CPU11-ETN


Product Dimensions

Product Dimensions_Dim

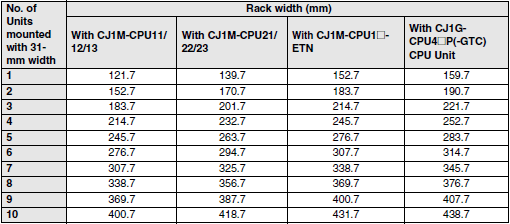

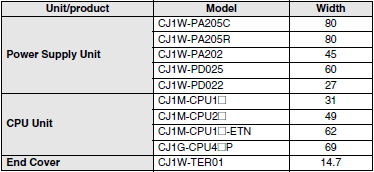

Example Rack Widths using CJ1WPA202 Power Supply Unit (AC, 14 W)

Example Rack Widths using CJ1WPA202 Power Supply Unit_Width

Power Supply Units, CPU Units, and End Covers

Power Supply Units, CPU Units, and End Covers_WidthPower Supply Units_Dim

CPU Units

CJ1H-CPU6[]H-R
CJ1H-CPU6[]H
CJ1G-CPU4[]H

CJ1H-CPU6[]H-R_Dim

CJ1G-CPU4[]P

CJ1G-CPU4[]P_Dim

CJ1M-CPU1[]

CJ1M-CPU1[]_Dim

CJ1M-CPU1[]-ETN

CJ1M-CPU1[]-ETN_Dim

CJ1M-CPU2[]

CJ1M-CPU2[]_Dim

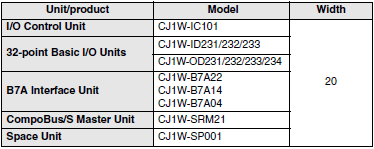

Units of Width 20 mm

Units of Width 20 mm_Dim
